I.B.S. Zero Footprint Home
Sample house with optimal orientation 2200 hrs of sun per year
Produces more energy than it consumes, powers all electrical, heating/cooling, charges electric vehicle, runs all appliances (without plywood and asphalt shingles).
Our Goal
To provide an affordable solution to the millennial home buyer and achieve a sustainable self-sufficient home and transportation which will financially carry as a similar size home in square footage, standard builder subdivision while decarbonizing the world.
I.B.S. Advantages and Benefits
✔ Competitive cost
✔ Ultra-fast deployment and installation
✔ Compatibility to existing systems
✔ Strength and durability
✔ Lower costs for solar panels installation (second to none)
✔ Impervious to termites, pests, mold
✔ Facilitate the highest R value at no extra cost
✔ Stick build construction, similar to current methods (lumber or C channel)
✔ The installation of solar panels direct to the roof trusses (no plywood or shingles required)
I.B.S. Zero Footprint Living
Preliminary study has shown the following under the optimal scenario.
Preliminary Study
• House size: 2700 sq ft
• KWh calculations 60 panels x 450 watts x 2200 hrs per year
• 60 panels size 2.015m x 1m yearly production = 59.400 KWh
• Dollar value at peak current rates $0.24 x 59,400 KWh = $14,256
• Electric Car (part of house purchase) approx. value – $45,000
I.B.S. Extras
• Cost to supply and install Solar Roof INCLUDED ✔
• Savings, for wood trusses, plywood, shingles, and labour INCLUDED ✔
• Cost savings for attic liveable space 540 sq ft INCLUDED ✔
• Cost to finish 540 sq ft livable space INCLUDED ✔
• Cost of back-up generator INCLUDED ✔
• Cost of storage batteries (50 KWh) INCLUDED ✔
The I.B.S. builder is able to compete with the standard home, while providing the same square foot home PLUS all of the above EXTRAS!
Direct Comparison with Conventional Home Builder
Typical home in North America around major cities 2700 square feet – average price $1,500,000 to $1,800,000
I.B.S. Cross Section
• Sample design for a typical 2,700 sq. ft. house
• Utilizes sloped roof containing 60 solar panels, oriented to maximize exposure
• Inverters, batteries, etc. stored in 3rd floor storage area
• 3rd floor airflow enables cooler operating panels, extending performance and life
I.B.S. Green Wall Section

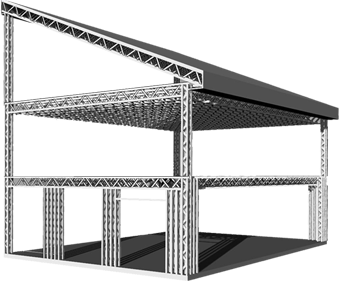

• Wall construction utilizes I.B.S. structural system of vertical galvanized steel square tubes with angular cross-struts
• Significant span between vertical tubes can be left void (using air as temperature modulation medium) or filled with fibre or spray insulation
• Exterior and interior surfaces can be traditionally decorated by brick, stucco and/or stone
Ground Floor Plan
Panelized System
Second Floor Plan
Panelized System
Hybrid Solar Power Community
